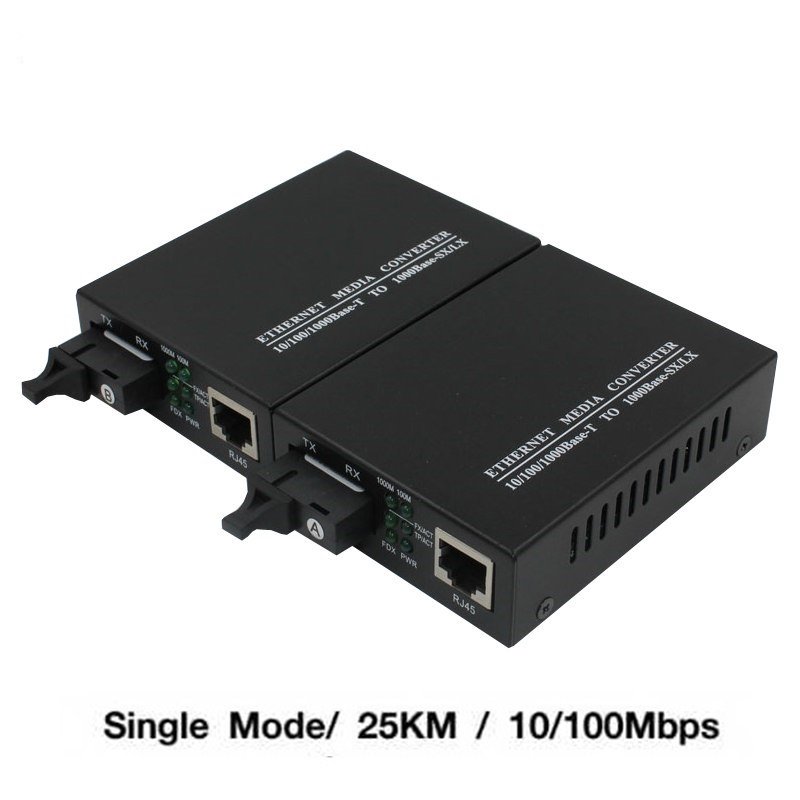

HG-FCS25A / HG-FCS25B

Media Converter Rang 25 KM, 10/100Mbps, Single-mode single core fiber converter, Rang 25KM, 10/100 Mbps part A+part B =one pair

Share

หมวดหมู่ : Fiber Optic

Share


  • Media Converter Rang 25 KM, 10/100Mbps
  • Single-mode single core fiber converter,
  • Rang 25KM, 10/100 Mbps
  • part A+part B =one pair



ModelHG-FCS25B
Protocol StandardIEEE802.3/u
Network InterferfaceRJ45 10/100/1000Mbps self-adaption
Transmission distance : 100m
Fiber InterfaceSingle mode SC
Optical fiber type : Single mode 9/125
1550R/1310T
Transmission rate : 1000Mbps
Transmission distance : 25km
Performance & SpecificationForwardng mode : Store forward
Transfer mode : Full Duplex/Full Duplex Automatic connection
Network Latency : <150
PowerPower type : external power
Power input : AC100V-240V 50/60Hz
Power inout : DC5V1A
DC socket : 2.5x5.0mm
Working EnvironmentStorage Temperature : -40 ํC - 70 ํ Operating Temperature : -10 ํC-55 ํC
Physical SpecificationSize (L*W*H) 70mm x 26mm x 93mm Fuselage color : Black
Packing SpecificationPackaging : 245x145x56x56 mm 1 pair/Box
