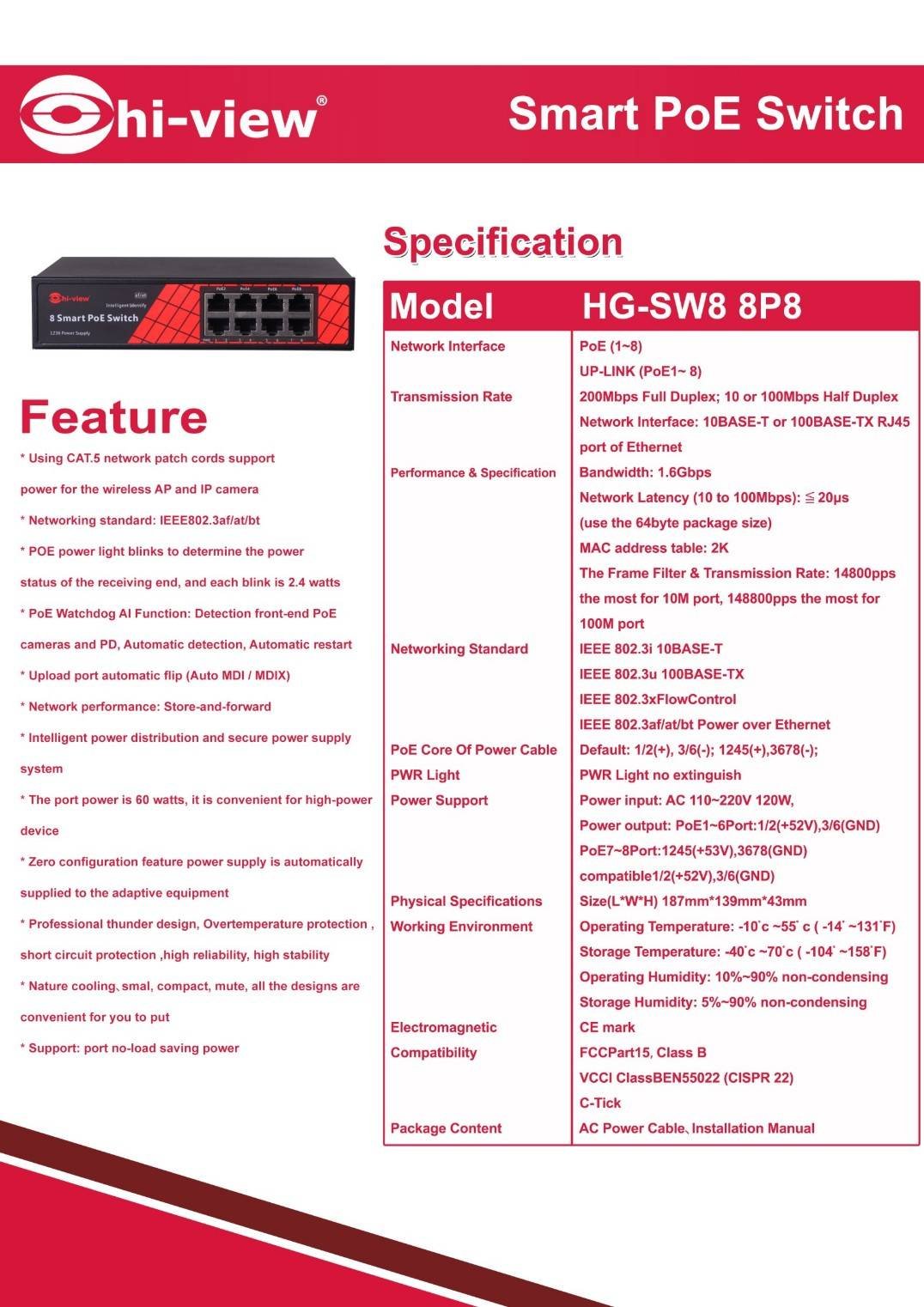

HG-SW8 8P8


Smart PoE Switch 8port 8 ports intellegent PoE Switch / Auto lip (Auto MDI / MDIX) RJ45 Up link (1.8) (10/100Mbps) Bandwidth:1.6Gbps , Mac address:2K Support IEEE 802.3af/at protoco/ 6KV lightning protection Power input: AC110V~240 / 120W / 50~60Hz, Size: 187*139*43mm


  • Using CAT.5 network cable support power for the Access Point and IP camera
  • Networking standard IEEE802.3af/t
  • Long distance transmission and power supply, maximum transmission distance is 130m
  • Upload port support Auto MDI / MDIX
  • Forwarding Mode: Store-and-forward
  • Intelligent power distribution and secure power supply system
  • Power circuit protection function can protect environment
  • Zero configuration feature power supply is automatically supplied to the adaptive eguipment
  • 6KV Professional thunder design, high reliability, high stability
  • Nature coolind, small, compact, mute, all the designs are convenient for you to put
  • Reduce the no-load loss
  • 10/100Mbps 1-8port up link or PoE can be converted to each other


ModelHG-SW8 8P8
Network InterfacePoE (1-8) up-Link (1-8),Automatic flip (Auto MDI / MDIX) (10/100M 8 uplink or 8 PoE port can be converted to each other)
Network StandardIEEE802.3af/t
Long Distance TransmissionMax 130M.
Network performaceStore-and-forward
Transmission Rate

100Mbps Full Duplex; 10 or 100Mbps Half Duplex

10BASE-T or 100BASE-TX RJ45 port of ethernet


Bandwidth:2 Gbps

Network Latency (10 to 100Mbps):20

(use the 64 byte packge size)

MAC address table: 1K

The frame Filter & Transmission Rate

14800pps the most for 10M port

148000pps the most for 100M port"

Network Sandart

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control

IEEE 802.3af/at Power over Ethernet

PoE Core of Power CableDefault: 1/2(+), 3/6(-) (Can Be Selected 4/5(+), 7/8(-)
Power Support

Power input: AC 110-220V/150W

Power output: PoE1-4Port1/2(+52V),3/6(GND)

Size (LxWxH)187mm x 139mm x 43mm
Operating Temperature-10 ํC-+40 ํC (-14 ํ-104 ํF)
Storage Temperature-40 ํC-+70 ํC (-104 ํ-158 ํF)
Operating Humidity10%-90% non-condensing
Storage Humidity5%-90% non-condensing
Electromagnetic Compatibility

CE mark

FCC Part 15, Class B

VCCI Class B EN 55022 (CISPR 22)


Lightning ProtectionSupport
Intelligent power distributionSupport
Secure power supply systemSupport
Port no-load Saving PowerSupport
Power circuit protectionSupport
Overtemperature protectionSupport
Short circuit protectionSupport
Package ContentAC Power Cable, Installation Manual Warranthy Card
