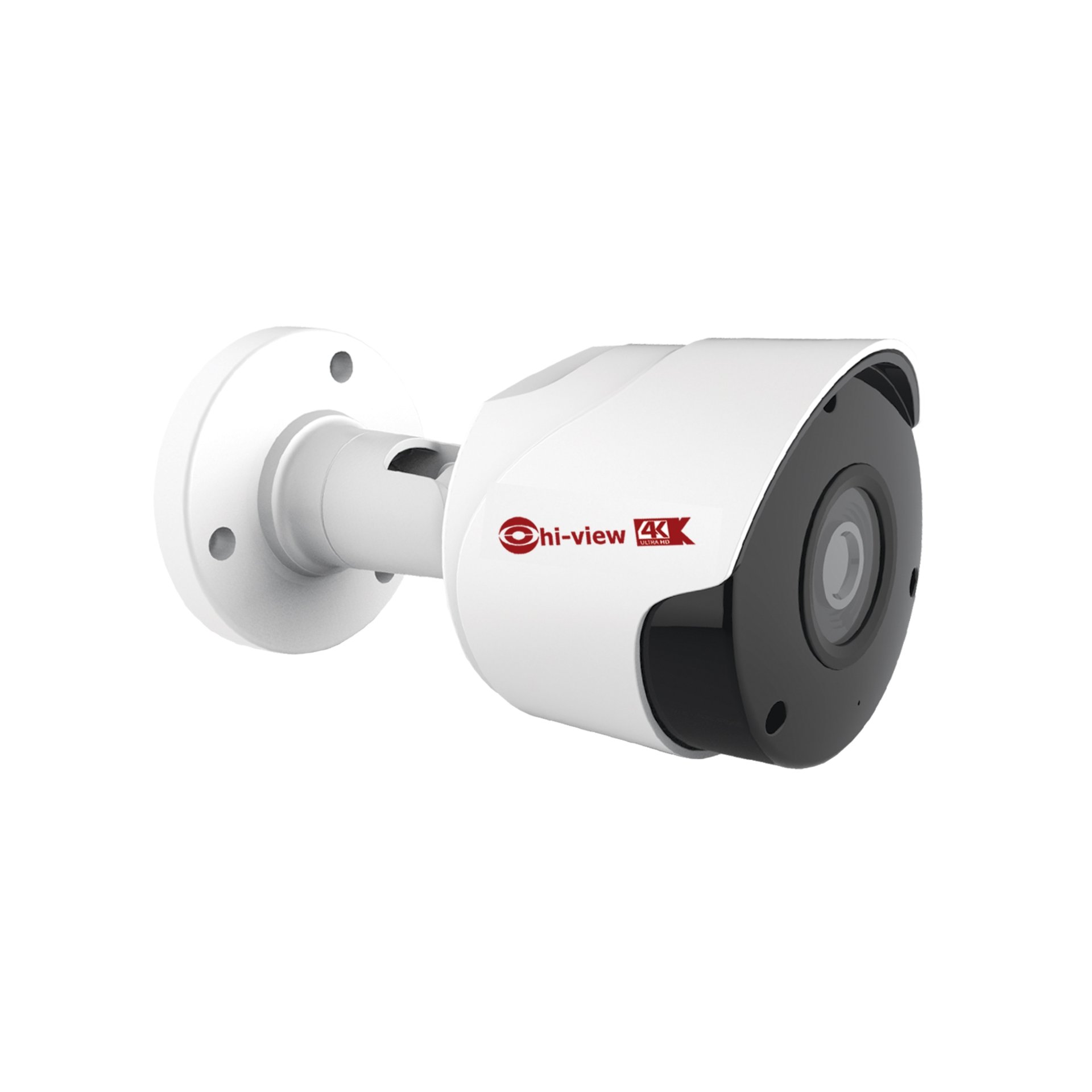

HP-78B80PE กล้องวงจรปิดไฮวิว ระบบไอพี 8 ล้านพิกเซล ใช้งานภายนอกและภายใน มีไมค์ในตัว บันทึกภาพและเสียง Hiview Bullet Mic-Built-in IP Camera PoE 8 MP

คุณสมบัติสินค้า:

1/2.3" progressive scan CMOS, Pixels 3840(H)x2160(V), 8.0MP. / H.265, H.264, Min. Illumination Color 0.1lux @ F1.2(AGC ON), B/W 0 lux @ IR ON, Stream Triple-Stream, Focal Length 3.6 mm, IR SMD 18 pcs., Up to 30M., Smart IR, IR CUT (IR Filters), WDR, DEFOG, BLC,ATW, AGC, ROI, 3D-DNR,ONVIF2.6, P2P, Smart Intelligent Detection, Email alarm, Motion alarm, IP66 / Mic-Built-in, Power supply 12VDC/POE

Share

หมวดหมู่ : CAMERA IP CAMERA

Share



Model
HP-78B80PE
Image Sensor1/2.3 ํ Progressive scan CMOS
Pixels384(H)x2160(V). 8.0MP.
Min. llluminationColor 0.1lux @F1.2 (AGC ON) / B/W 0 lux @ IR ON
Shutter Speed1/5s ~ 1/20000s/AUTO
Slow ShutterSupported (Auto, Manual)
Day / NightAuto (ICR) / Color / B/W
IR CUT (IR Filters)Supported
Wide Dynamic RangeDigital WDR (Auto, Manual)
White BalanceAUTO / INDOOR / MANUAL
Gain Control (AGC)Auto / Manual (Off/Low/Mid/High)
Backlight CompensationBLC (Low,Mid,High)
DefogSupported (Auto, Manual)
Lens
Mount TypeM12
F-StopF2.0 +-5%
Focal Length3.6 mm
Angle of ViewH.FOV: 85 ํ
Infrared
IRIR SMD 18 pcs.
IR DistanceUp to 30M.
IR IntensitySmart IR
IR SwapSupported
Viedo / Audio
Video CompressionH.265, H.264 (Baseline, Main profile, High profile)
Audio CompressionG711A, G711U, ADPCM, G726 16k, G726 24k, G726 32k, G726 40k
StreamTriple-Stream
Image ResolutionMain Stream 8MP(3840x2160), 4MP(2592x1520), 3MP(2304x1926)
 1080P(1920x1080), 720P(1280x720)
 Sub Stream 1080P(1920x1080), 720P(1280x720)
 VGA (640x480)
 QVGA (320x240)
 Mobile Stream VGA (640x480)
 QVGA (320X240)
Frame RateMain Stream 1~15fps
 Sub Stream 1~15fps
 Mobile Stream 1~15fps
Bitrate8Kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Privacy MaskingSupported Up to 4 zones
ROISupported (Max.8)
Digital Noise Reduction3D noise reduction (Auto, Manual)
Digital DefogSupported
Image SettingHue, Bright, Contrast, Saturation, Sharpness
Image Flip / MirrorSupported
Lens FlipSupported
Angle FlipSupported
Angle RatationSupported
Corridor ModeSupported
E-zoomSupported
Anti FlickerSupported (50Hz, 60Hz)
OSD SettingSupported
Network
Network ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP,
 UPnP, SNMP, HTTPS, FTP, P2P
DDNSHiview DDNS, Dyndns, NO-IP,3322
User InterfaceIE 11, CMS, APP
Account ManagementSupported
ModelHP-78B80PE
Max. User AccessMax. 7 accounts
Application ProgrammingONVIF 2.6
Cloud (P2P)Supported
Import Export ConfigSupported
Network UpgradeSupported
IP FilterSupported
Maintain (Auto Reboot)Supported
Alarm
Push Alarm (App)Supported
Email AlarmSupported (max.3 receivers)
Motion DatectionSupported
Occlusion DetectionSupported
Alarm EventText overlay, Email notice, LOG
Alarm TriggersEmail / FTP
Smart IntelligentPerimeter Intrusion Detection (PID)
 Line Crossing Detection (LCD)
 Sationary Object Detection (SOD)
 Pedestrian Detection (PD)
 Face Detection (FD)
 Cross Counting. (CC)
Intelligent ScheduleSupported
Intelligent Analysis ReportSupported (Daily, Weekly, Monthy, Annual)
 List, Histogram, Line Chart
Intelligent AnalysisExportSupported (Excel Format)
Interfaces
Ethernet10/100M. RJ45 interface x1
Built-in Micx1
Power input DC jackx1
Environment
Operating Temperature-30 ํC ~ +55 ํC
Storage Temperature-30 ํC ~ +60 ํC
Operating Humidity10% ~ 90%
Protection LevelIP66
Electrical
POESupported (Class 0)
Power Supply12V DC +- 10% / PoE (IEEE802.3af)
Power ConsumptionIR Off ≤ 7W
Mechanical
Casing Material Metal bullet
Weight appr. 349g
DimensionsꝊ72 x 154mm
Mounting BracketBracket included
