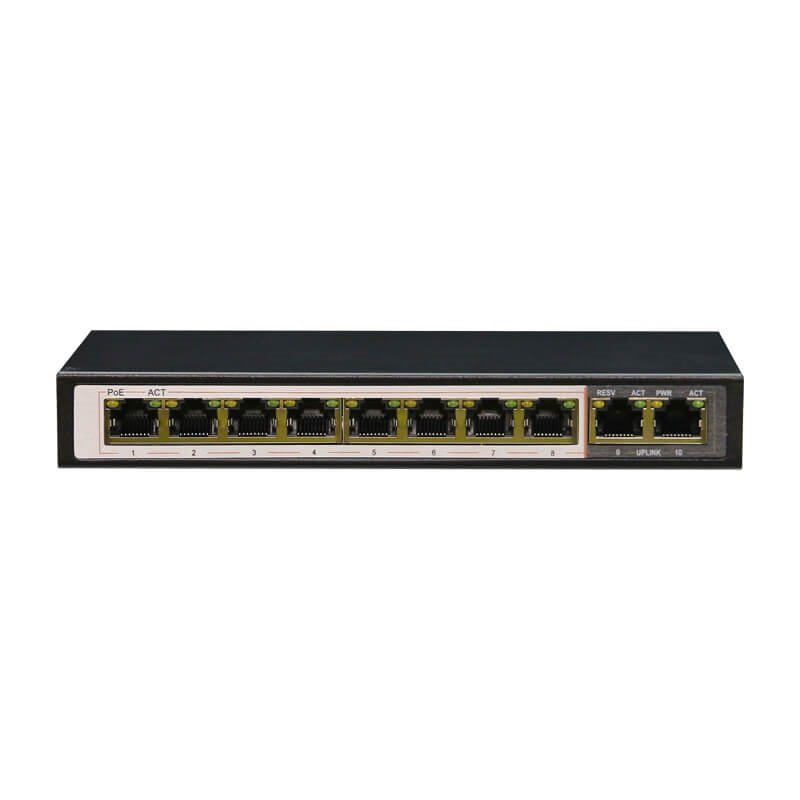

HR-SW10 2P8 AI

คุณสมบัติสินค้า:

AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above) AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance, AI GoS: Prioritize the identified video data to make video transmission smoother, AI PoE: Automatic detection power of port, power off and restart the device if find dead machine Support standard IEEE 802.3 at/at protocol, automatically detect and identify the PD devices comply with IEEE 802.3 at/at protocol and supply power, Support upward port auto MDI/MDIX, Adopted storage forward switching system, Smart power and minimum consumption, guarantee PD requirement., power supply circuit protection function and protection back-end device safety, Automaticallyprovide the adaptive device, Fanless design realize saving energy and environment protection, Compact size design, Support saving power function when port dis-connection, All Ports support Wire-speed~ forwarding - capability, Plug and play, easy using without configuration

Share

Share

  • AI Extend: 1-8 port supports 250M meters long distance power supply (recommended cat 5 or above)
  • AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance
  • AI GoS: Prioritize the identified video data to make video transmission smoother
  • AI PoE: Automatic detection power of port, power off and restart the device if find dead machine
  • Support standard IEEE 802.3 at/at protocol, automatically detect and identify the PD devices comply with IEEE 802.3 at/at protocol and supply power
  • Support upward port auto MDI/MDIX
  • Adopted storage forward switching system
  • Smart power and minimum consumption, guarantee PD requirement.
  • power supply circuit protection function and protection back-end device safety
  • Automaticallyprovide the adaptive device
  • Fanless design realize saving energy and environment protection
  • Compact size design
  • Support saving power function when port dis-connection
  • All Ports support Wire-speed~ forwarding - capability
  • Plug and play, easy using without configuration


SPECIFICATION

Model

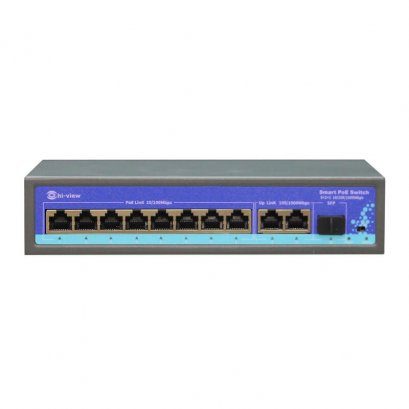

HH-SW10 2P8 S1
Network Port
8 10/100Mbps PoE RJ45 port (port 1 ~ port 8)
 2 10/100/1000Mbps Non-PoE RJ45 port (port 9 ~ port 10)
Transfer Rate
100Mbps full Duplex, 10 or 100Mbps Half Duplex

Network interiace: 10BASE-T or 100BASE-TX

Ethernet RJ-45 port
Performance
Bandwidth: 5.6Gbps (no block)

Frames filter and transfer rate

10M port maximum 14,800pps

100M port maximum 148,800pps
 1000M port maximum 1,488,000pps
Network protocol and standardIEEE 802.3i 10BASE-T
 IEEE 802.3u 100BASE-TX
 IEEE 802.3x Flow Control
 IEEE 802.3af/at Power over Ethernet
Power pin
1/2 (+), 3/6 (-);
LEDs indicatorPower
 LINK I ACT
 RESV: reserve
PowerTotal power: 96W
 Single port maximum output power: 30W
DimensionsSize (LxWxH): 184mm x 94mm x 27 mm
 Weight: 1.35kg
EnvironmentOperating Temperature: 0 ํ-45 ํC (32 ํ-113 ํF)
 Storage Temperature: -20 ํC~90 ํC (-4 ํ~194 ํF)
 Working Humidity: 10%~90% (Non condensing)
 Storage Temperature: 5%~90% (Non-condensing)
CertificationsCE / FCC / RoHS / CCC
