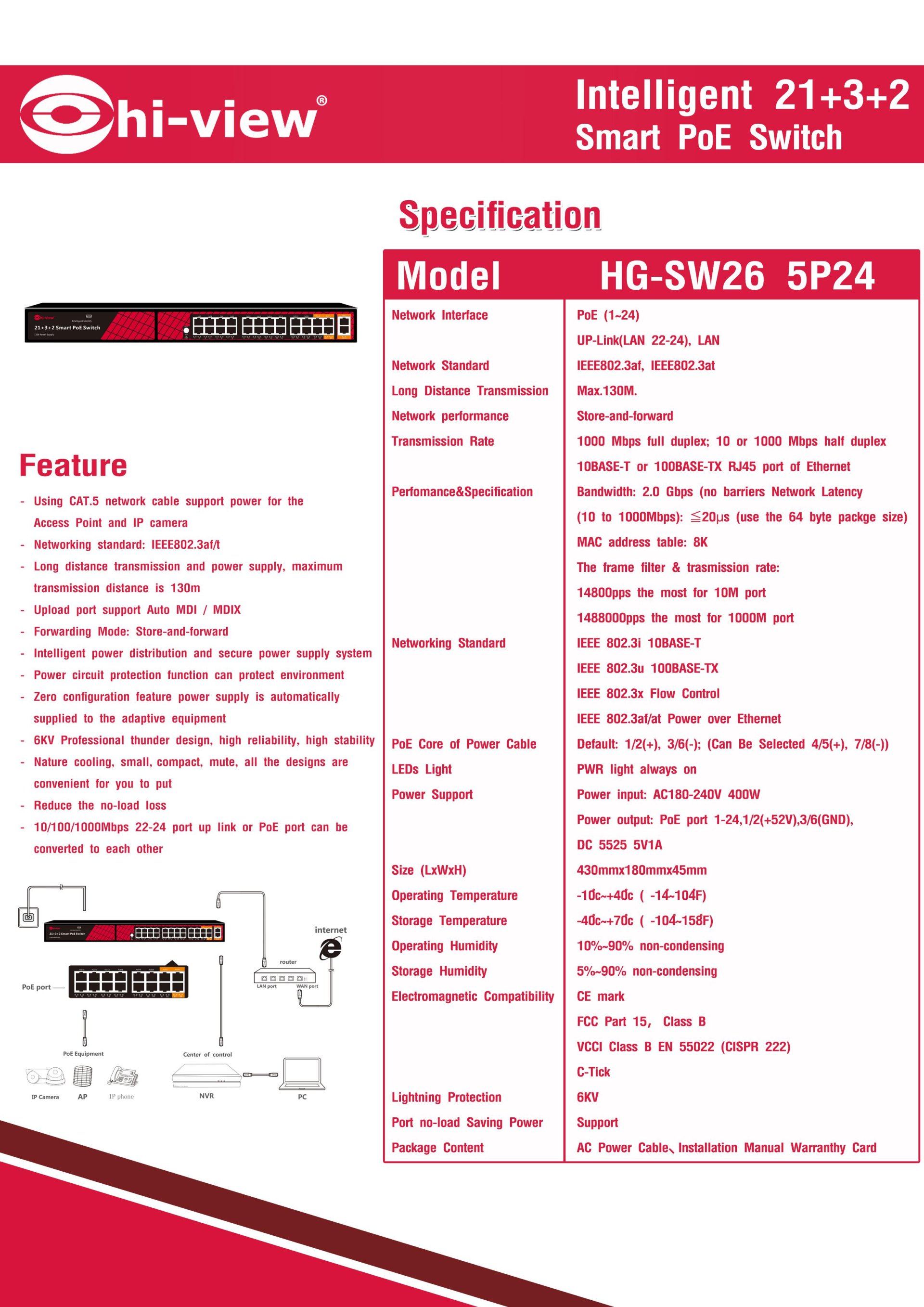

HG-SW26 5P24

21E+3G+2G Smart PoE Switch, Bandwidth: 14.2Gbps, 2*Gigabit Uplink port+3 Rj45 Poe port+ 21*100M, adaptive Poe port+CD 5525 5V1A, MAc Address: 8K, 6KV lightning protection, shot-circuit protection, Power: AC 180-240V / 400W / 50~60Hz, Size: 430*180*45mm

Share

Share


  • Using CAT.5 network cable support power for the Access Point and IP camera
  • Networking standard IEEE802.3af/t
  • Long distance transmission and power supply, maximum transmission distance is 130m
  • Upload port support Auto MDI / MDIX
  • Forwarding Mode: Store-and-forward
  • Intelligent power distribution and secure power supply system
  • Power circuit protection function can protect environment
  • Zero configuration feature power supply is automatically supplied to the adaptive eguipment
  • 6KV Professional thunder design, high reliability, high stability
  • Nature coolind, small, compact, mute, all the designs are convenient for you to put
  • Reduce the no-load loss
  • 10/100/1000Mbps 22-24 port up link or PoE can be converted to each other

ModelHG-SW26 5P24
Network InterfacePoE (1-24) up-Link (LAN 22-24) LAN
Network StandardIEEE802.3af, IEEE802.3at
Long Distance TransmissionMax 130M.
Network performaceStore-and-forward
Transmission Rate100Mbps Full Duplex; 10 or 100Mbps Half Duplex
10BASE-T or 100BASE-TX RJ45 port of ethernet
Perfomance&SpecificationBandwidth:20 Gbps (no barriers Network Latency (10 to 1000Mbps)< 20 (use the 64 byte packge size)
MAC address table: 8K
The frame Filter & Transmission Rate
14800pps the most for 10M port
148000pps the most for 100M port"
Network SandartIEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet
PoE Core of Power CableDefault: 1/2(+), 3/6(-) (Can Be Selected 4/5(+), 7/8(-)
LEDs LightPWR light always on
Power Support

Power input: AC 180-240V/400W
Power output: PoE1-24Port1/2(+52V),3/6(GND),DC 5525 5V1A

Size (LxWxH)430mm x 180mm x 45mm
Operating Temperature-10 ํC-+40 ํC (-14 ํ-104 ํF)
Storage Temperature-40 ํC-+70 ํC (-104 ํ-158 ํF)
Operating Humidity10%-90% non-condensing
Storage Humidity5%-90% non-condensing
Electromagnetic CompatibilityCE mark
FCC Part 15, Class B
VCCI Class B EN 55022 (CISPR 222)
C-Tick
Lightning Protection6KV
Port no-load Saving PowerSupport
Package ContentAC Power Cable Installation Manual Warranthy Card
