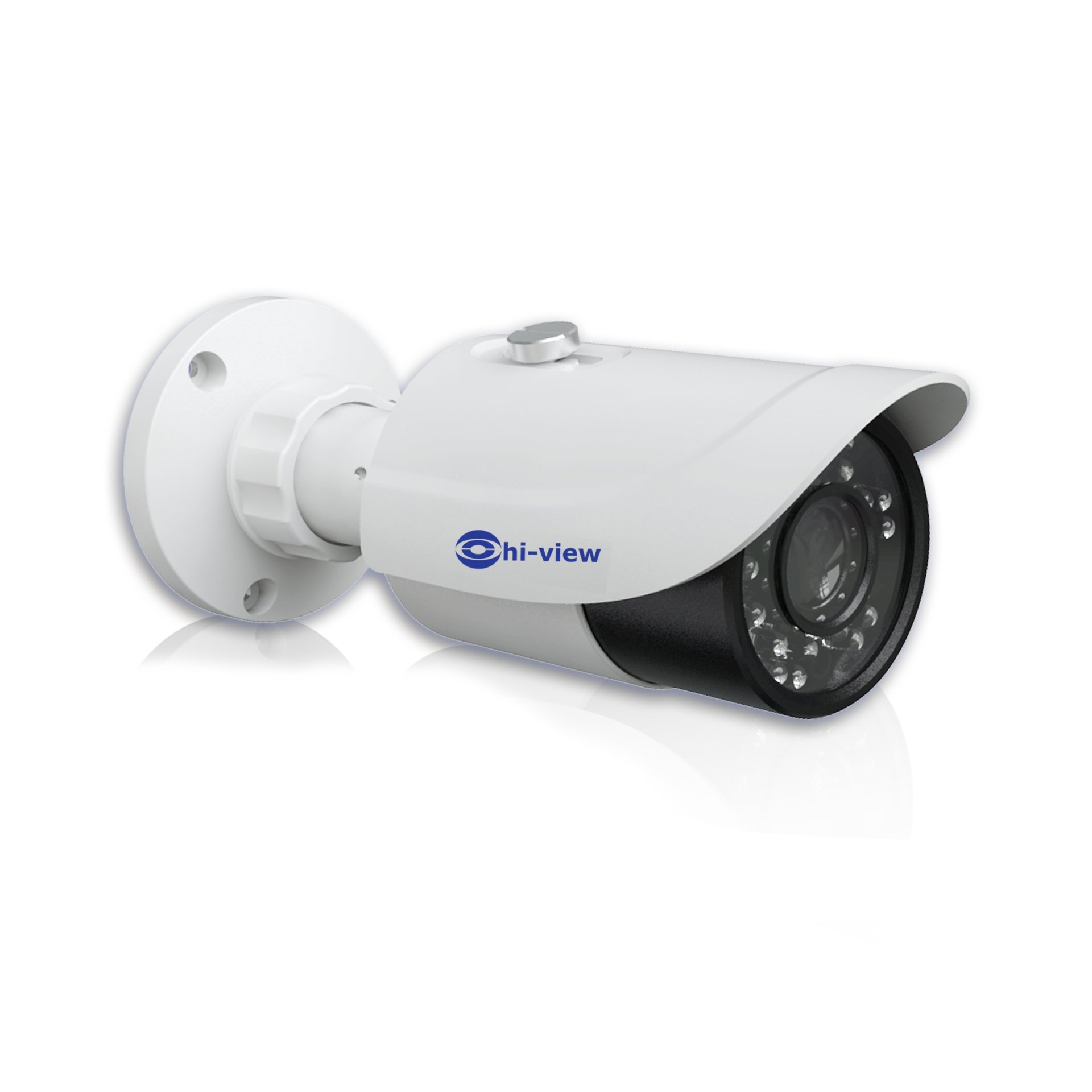

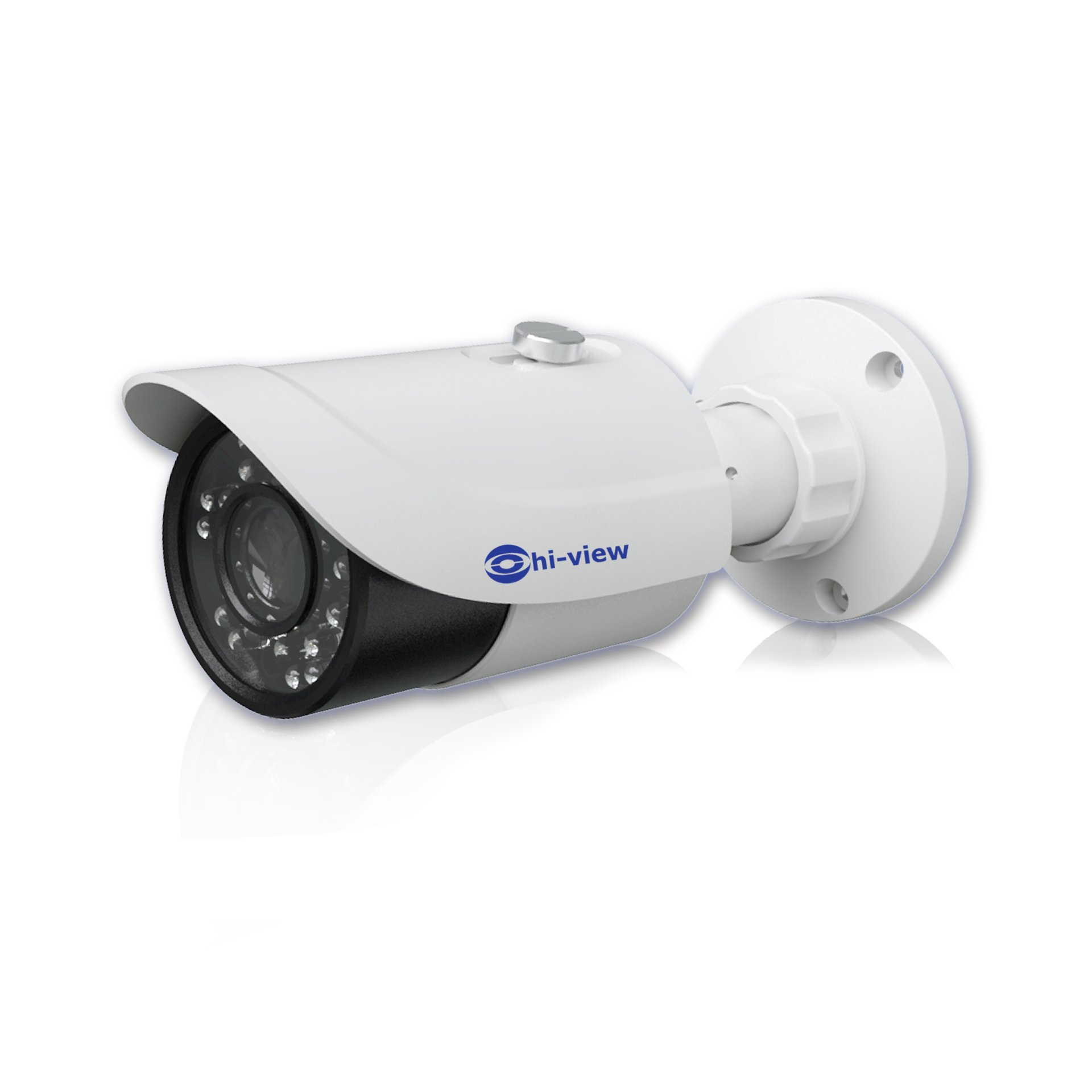

HP-97B50VPE-Al กล้องวงจรปิดไฮวิว กล้องตรวจจับใบหน้า ระบบไอพี 5 ล้านพิกเซล ใช้งานภายนอกและภายใน Hiview Bullet AI Technology IP Camera PoE 5 MP
คุณสมบัติสินค้า:
SKU : HIVIEW IP CAMERA HP-97B50VPE-Al
1/2.5" CMOS progressive scan / 5MP, Video Compression H.265, H.265+, H.264, H.264+, MJPEG, Day / Night Mode Auto / day / night / timing, IR-CUT Filter Supported, Smart IR Supported (On/Off), Video Encode Slice Split Supported, Water Mark / OSD Supported, Date and Time Supported, Video Mask Supported (Max. 4 areas), ROI Supported (Max. 3 areas), Free DDNS www.autoddns.com, dvrdydns, Etc., Water-Proof IP66 Supported, Power Supply 12V DC +- 10% / PoE (IEEE802.3af)
Share
Share
- 1/2.5" CMOS progressive scan / 5MP
- Video Compression H.265, H.265+, H.264, H.264+, MJPEG
- Day / Night Mode Auto / day / night / timing
- IR-CUT Filter Supported
- Smart IR Supported (On/Off)
- Video Encode Slice Split Supported
- Water Mark / OSD Supported
- Date and Time Supported
- Video Mask Supported (Max. 4 areas)
- ROI Supported (Max. 3 areas)
- Free DDNS www.autoddns.com, dvrdydns, Etc.
- Water-Proof IP66 Supported
- Power Supply 12V DC +- 10% / PoE (IEEE802.3af)
- ดาวน์โหลดสเปคสินค้า Hiview HP-97B50VPE-Al ที่นี่
| Model | HP-97B50VPE-Al |
| Image Sensor | 1/2.5" APTINA AR0521 CMOS progressive scan |
| CPU | Hisilicon Hi3516D |
| Pixels | 5MP |
| Min.lllumination | 0.0.36 lux@F2.0,AGC ON, 0 lux@F2.0, AGC ON 0.013 lux@F1.2, AGC ON, 0 lux@F1.2, AGC ON |
| Lens | |
| Mount Type | 12 |
| Focal Length | 3.3-12mm@F1.4 |
| Iris Type | Fixed iris |
| Horizontal Field of View | 93.9ํ-34.8ํ |
| Infared | |
| Day / Night Mode | Auto/day/night/timing |
| IR-CUT Filter | Supported |
| IR LED | 36 Pcs. |
| IR LED LED Distance | 20-30M. |
| Smart IR | Supported (On/Off) |
| Display | |
| Image Parmeter | 3 type (common, day, night) and schedule setting |
| Brihtness Adjust | Supported |
| Contrast Adjust | Supported |
| Hue Adjust | Supported |
| Saturation Adjust | Supported |
| Sharpness Adjust | Supported |
| Noise Reduction | Supported 3D DNR |
| Defog | Supported |
| WDR/HWDR | Supported 12dB |
| BLC | Supported |
| HLC | Supported |
| HFR Mode | Supported (1080P @50fps/PAL, 60fps/NTSC) |
| Anti-Filcker | Supporte 50Hz/60Hz |
| White Balance | Supported (Auto/indoor/outdoor/manual) |
| Frequency | Supported 50Hz/60Hz |
| Exposure Mode | Supported auto/manual (1/25s-1/100,000s) |
| Gain | Supported |
| Crridor Pattern | Supported 0/90/180/270 |
| Image Mirror | Supported |
| Image Flip | Supported |
| Backlight Compensation | Supported |
| E-zoom | Supported |
| Images | |
| Video Compression | H.265, H265+, H264, H.264+, MJPEG |
| Audio Compression | G711A, G711U |
| Compression Standard | Base line, Main Profile, High Profile |
| Bit Rate Type | CBR/VBR |
| Stream | Triple stream |
| Image Resolution | Main stream 2592x1944, 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x720, Sub stream 1280x720, 704x576, 352x288 Third stream 704x576, 480x240, 352x288 |
| Image Frame Rate | Main stream 2592x1944, 2592x1520, 2560x1440,2304x1296, 1920x1080,1280x720@25fps(PAL) Sub stream 1280x720@15fps(PAL),704x576@25fps (PAL), 352x288@25fps(PAL) Third stream 704x576,480x240,352x288@25fps(PAL) |
| Video Encde Slice Split | Supported |
| Water Mark | Supported |
| OSD | Supported |
| Date and Time | Supported DST, NTP, synchronize with PC,manual |
| Video Mask | Supported (Max. 4 areas) |
| ROI | Supported (Max. 3 areas) |
| Face Detection | |
| Face Detection | Pupil distance of a facial image over 80 pixel can be detected |
| Face Computing | 3-5 face/Sec |
| Facde Capturing Distance | Recommended distance 3-5 meters (Depend on lens) |
| Face Capturing | By precisiondeting, tracing, capturing,scoring and screening the moving faces to get the most effective face snapshots |
| Intelligent Light Compensation | Built-in high effcient light LEDs, time switch available |
| Alarm | |
| Motion Alarm | Supported |
| Motion Sensitivity | Supported |
| Motion Schedule Setting | Supported |
| Motion Alarm Triggering | Email/FTP |
| Alarm Server | Supported |
| Network | |
| Network Protocols | IPv4,IPv6, DNS, PPPoE, HTTP, HTTPS, RTSP,DNS, SNMPv1/v2/v3, 802.1X, RTSP, UPNP, SMTP, FTP, Qos, ONVIF, DST, NTP |
| Test IP Address Function | Supported |
| DDNS Protocol | autoddns.com/88ip.net/dns2p.net/meibu.com/dyndns.com/no-ip.com/dvrdydns/mintdns/123ddns.com |
| Free DDNS | www.autoddns.com, dvrdydns, Etc. |
| Application Programming | ONVIF profile S |
| IP Change Notification | Support (Tringering email, FTP) |
| Online Connection | Support simultaneous monitoring for up to 6 users |
| User Interface | IE 11,NVMS2.0, APP (Superliveplus) |
| Security | |
| User Account Management | Supported |
| IP/MAC Address Filter | Supported (black and white list) |
| Locking Once lllegal Login | Supported |
| Online User Checking | Supported Kick-off |
| Maintenance | |
| Backup and Restore | Supported export/import setting, load default |
| Reboot | Supported time/date schedule |
| System Upgrade | Supported |
| Log Serach | Supported export log |
| Interfaces | |
| RJ45 | x1 (Speed 100Mbps), POE |
| Audio lnput | x1 (Jack 3.5) |
| BNC Output | x1 |
| Power Input | x1 (DC jack) |
| Environmental | |
| Operating Temperature | -30ํC-+60ํC |
| Operating Humidity | 95% or less (non-condensing) |
| Water-Proof | IP66 |
| Electrical | |
| Power Supply | 12V DC +- 10% / PoE (IEEE802.3af) |
| Power Consumption | IR Off:32mA/3.2W IR On:54mA/7W |
| Mechanical | |
| Weight | Approx. 0.6KG |
| Dimensions | 219.4x86.7 |
