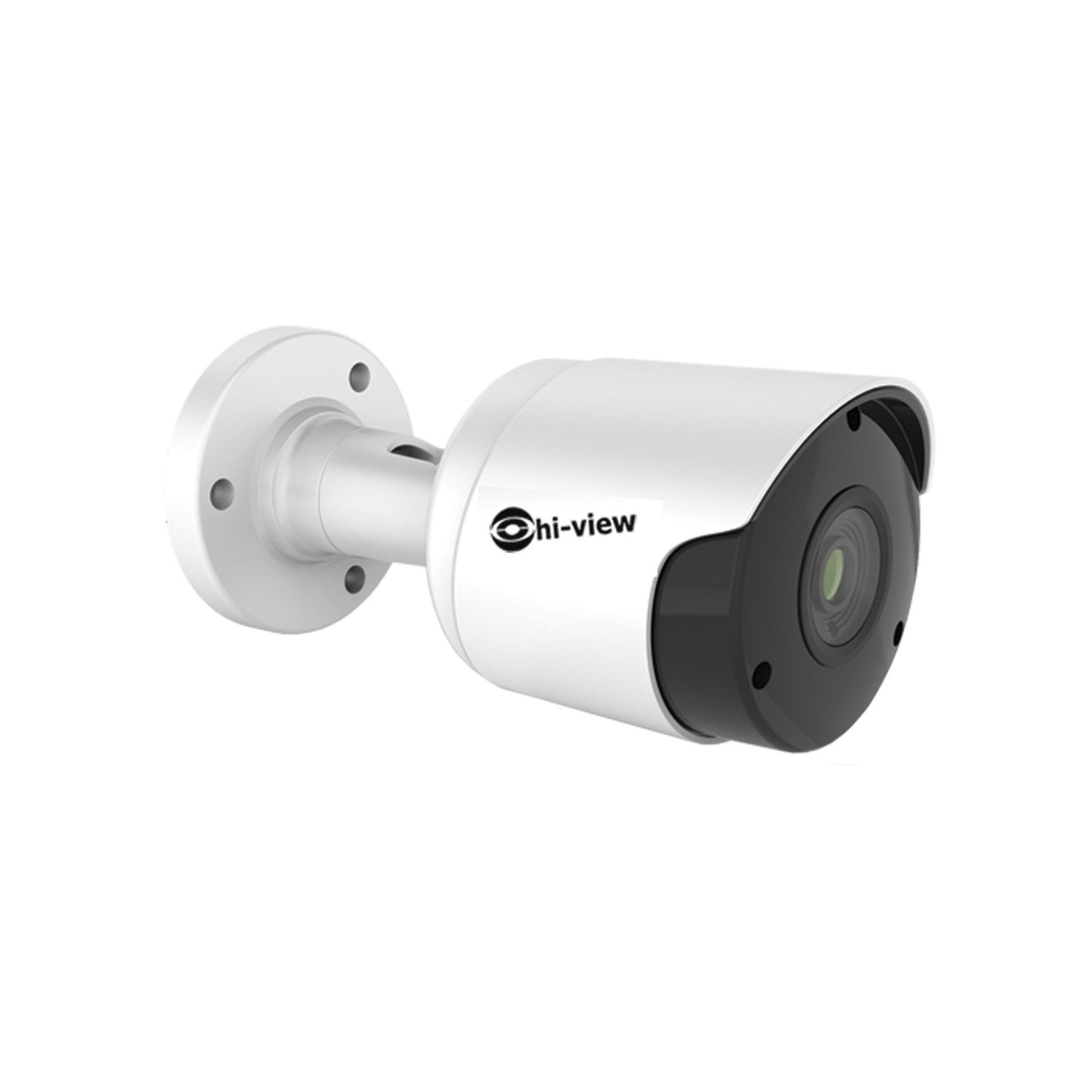

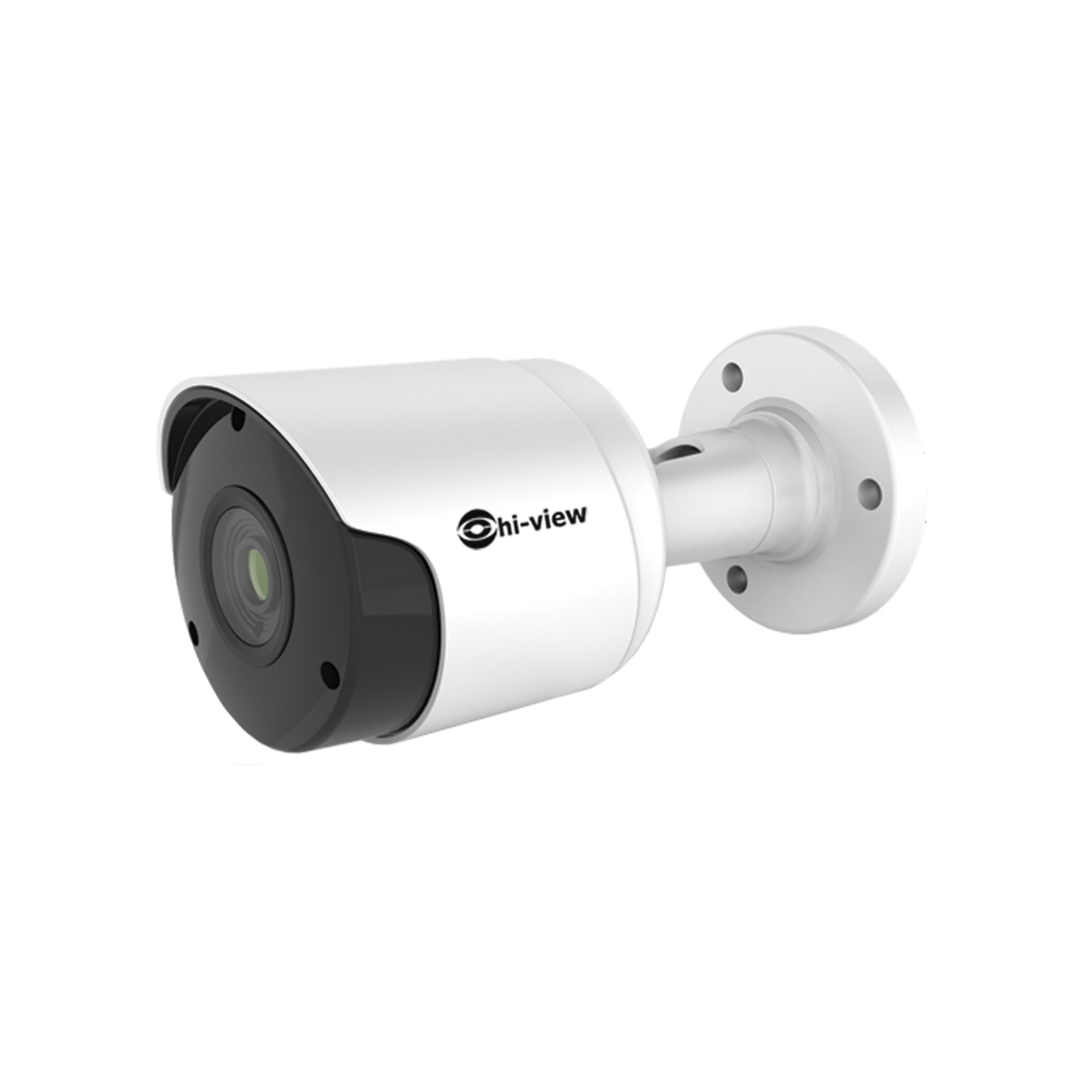

HP-78B20PE กล้องวงจรปิดไฮวิว ระบบไอพี 2 ล้านพิกเซล ใช้งานภายนอกและภายใน มีไมค์ในตัว บันทึกภาพและเสียง Hiview Bullet Mic-Built-in IP Camera PoE 2 MP

คุณสมบัติสินค้า:

1/2.7” SC2235H CMOS sensor, Sensor Resolution 1936Hx1096V (2MP) / H.265/H.264, Color 0.1lux @ F1.2(AGC ON); B/W 0 lux @ IR ON, Lens Fixed lens 3.6mm. / lens Mount M12, View of Angle H.FOV: 88ํ / Shutter 1/5 ~ 1/20000s, IR SMD 18 Pcs. / 30M., Microphone x1 Built-in (Adjust volume), DDNS 3322, Hiview, NO-IP, DYNDNS, ONVIF Support V2.6, Cloud P2P Support (http://www.icloud-eye.com), Ingress Protection IP66, Power Supply DC12V/1A.

Share

หมวดหมู่ : CAMERA IP CAMERA

Share

  • 1/2.7” SC2235H CMOS sensor
  • Sensor Resolution 1936Hx1096V (2MP) / H.265/H.264
  • Color 0.1lux @ F1.2(AGC ON); B/W 0 lux @ IR ON
  • Lens Fixed lens 3.6mm. / lens Mount M12
  • View of Angle H.FOV: 88ํ / Shutter 1/5 ~ 1/20000s
  • IR SMD 18 Pcs. / 30M.
  • Microphone x1 Built-in (Adjust volume)
  • DDNS 3322, Hiview, NO-IP, DYNDNS
  • ONVIF Support V2.6
  • Cloud P2P Support (http://www.icloud-eye.com)
  • Ingress Protection IP66
  • Power Supply DC12V/1A.
  • ดาวน์โหลดสเปคสินค้า Hiview HP-78B20PE ที่นี่

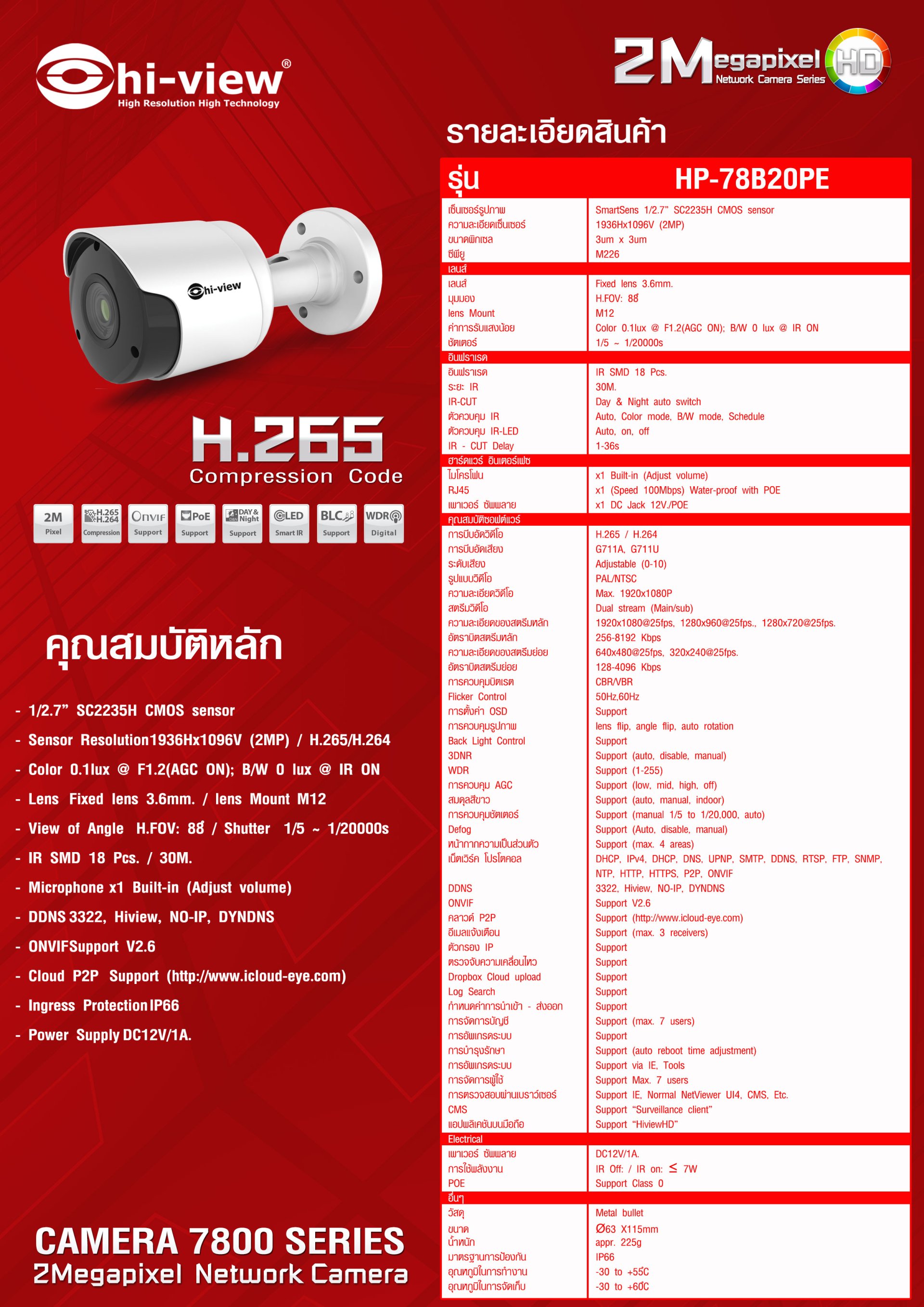

SPECIFICATION

Model
HP-78B20PE
ImageSmartSens 1/2.7" SC2235H CMOS sensor
Sensor Resolution1936Hx1096V (2MP)
Pixel Size3um x 3um
CPUM226
Lens

LensFixed lens 3.6mm.
View of AngleH.FOV: 88 ํ
lens MountM12
Min. llluminationColor 0.1lux@F1.2(AGC ON): B/W 0 lux @ IR ON
Shutter1/5 ~ 1/20000s
Infrared
InfraredIR SMD 18 Pcs.
IR distance30M.
IR-CUTDay & Night auto switch
IR ControlAuto, Color mode, B/W mode, Scheddule
IR-LED ControlAuto, on, off
IR-CUT Delay1-36s
Hardware Interfaces
Microphonex1 Built-in (Adjust volume)
RJ45x1 (Speed 100Mbps) Water-proof with POE
Power Supplyx1 DC Jack 12V./POE
Software
Video SompressionH.265 / H.264
Audio CompressionG711A, G711U
Audio VolumeAdjustable (0-10)
Video FormatPAL/NTSC
Video ResolutionMax. 1920x1080P
Video StreamingDual stream (Main/sub)
Main Stream resolution1920x1080@25fps, 1280x960@25fps., 1280x720@25fps.
Main Stream Bitrate256-8192 Kbps
Sub Stream resolution640x480@25fps, 320x240@25fps.
Sub Stream Bitrate128-4096 Kbps
Bitrate ControlCBR/VBR
Flicker Control50Hz, 60Hz
OSD SettingSupport
Image Controllens flip, auto rotation
Back Light ControlSupport
3DNRSupport (auto, disable, manual)
WDRSupport (1-225)
AGC ControlSupport (low, mid, high, off)
White BalanceSupport (auto, munual, indoor)
Shutter ControlSupport (manual 1/5 to 1/20,000, auto)
DefogSupport (Auto, disable, manual)
Privacy MaskSupport (max. 4 areas)
Network ProtocolDHCP, ipV4, DHCP, DNS, UPNP, SMTP, DDNS, RTSP, FTP, SNMP,
 NTP, HTTP, HTTPS, P2P, ONVIF
DDNS3322,
ONVIFSupport V2.6
Clound P2PSupport (http://www.icould-eye.com)
Email AlarmSupport (max. 3 receivers)
IP FilterSupport
Motion DetectionSupport
Dropbox Clound uploadSupport
Log SearchSupport
Import-export configSupport
Account ManagementSupport (max. 7 users)
System UpgradeSupport
MaintainSupport (auto reboot time adjustment)
Upgrade SystemSupport via IE, Tools
Users ManagementSupport (Max. 7 users)
Browsers MonitoringSupport IE, Normal NetViewer Ul4, CMS, Etc.
CMSSupport "Surveillance client"
Mobile ApplicationSupport "HiviewHD"
Electrical
Power SupplyDC12V/1A
Power ConsumptionIR Off: / IR on: ≤ 7W
POESupport Class 0
Others
Casing MaterialMetal Bullet
DimensionꝊ63 x 115mm
Weightappr. 225g
Ingree ProtectionIP66
Operating Temperature-30 to +55 ํC
Storage Temperature-30 to +60 ํC
