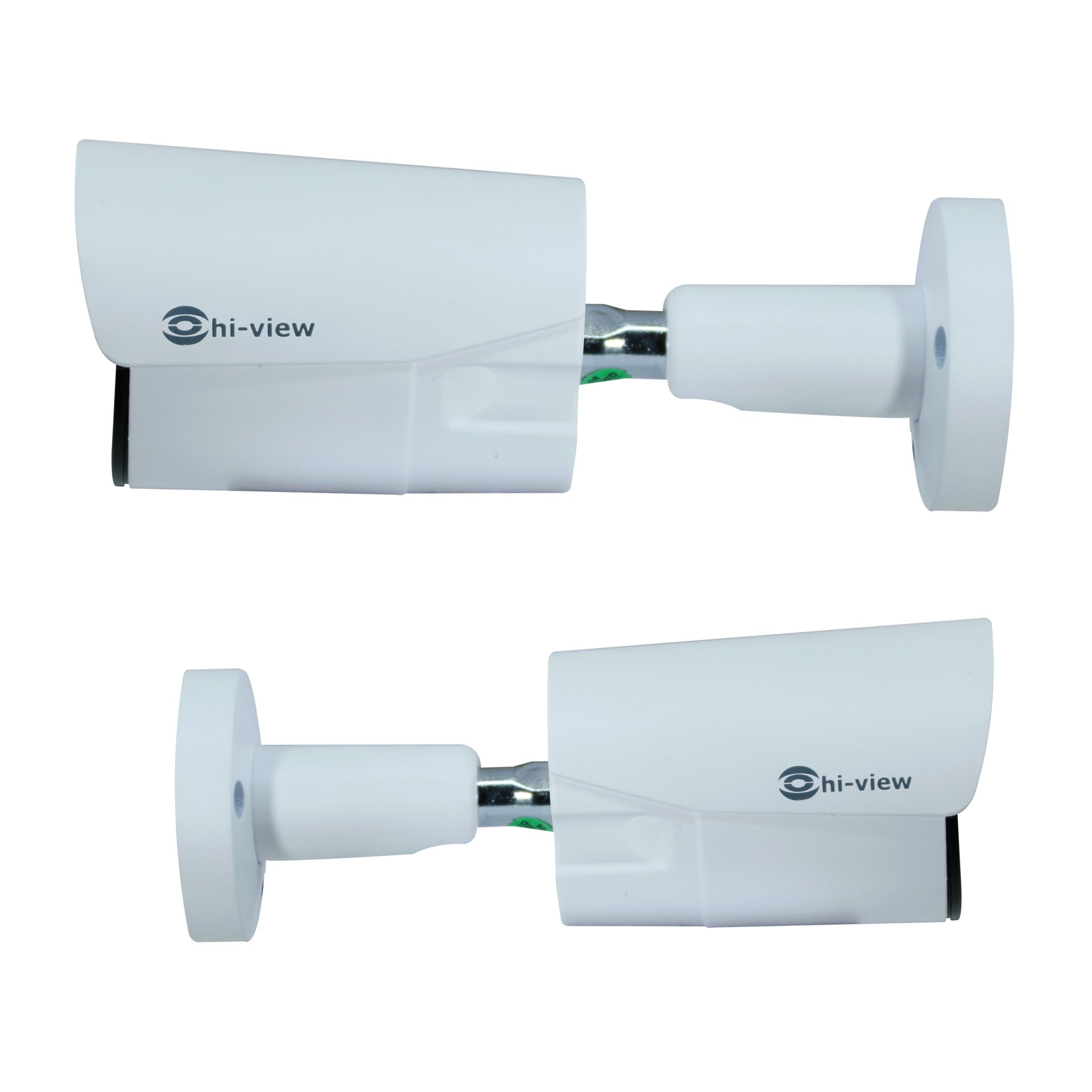

HA-524B20E
คุณสมบัติสินค้า:
Sony 1/2.7" CMOS progressive scan, 4-in-1 (AHD/TVI/CVI/CVBS), Frame rate "30fps@60Hz / 25fps@50Hz", "Color: 0.01 lux@F1.2, AGC ON) 0 lux with IR, B/W: 0.001 lux@F1.2, AGC ON) 0 lux with IR", Lens size 3.6mm. / IR SMD 18 Pcs., IR distance 15-35M. / IP66.
หมวดหมู่ : CAMERA , AHD CAMERA ,
Share
- Sony 1/2.7" CMOS progressive scan
- 4-in-1 (AHD/TVI/CVI/CVBS)
- Frame rate "30fps@60Hz / 25fps@50Hz"
- "Color: 0.01 lux@F1.2, AGC ON) 0 lux with IR
- B/W: 0.001 lux@F1.2, AGC ON) 0 lux with IR"
- Lens size 3.6mm. / IR SMD 18 Pcs.
- IR distance 15-35M. / IP66
| Model | HA-524B20E |
| Solution | Sony 1/2.7" CMOS progressive scan |
| Video system | 4-in-1 (AHD / TVI / CVI / CVBS) |
| Video format | PAL/NTSC |
| Video resolution | 1920x1080P/120P |
| CVBS resolution | "Colo: 0.01 lux@F1.2, AGC ON) 0 lux with IR B/W: 0.001 lux@F1.2, AGC ON) 0 lux with IR" |
| Electric shutter | Auto: 1/50s(1/60s) to 1/100,000s (PAL) |
| Frame rate | "30fps@60Hz / 25fps@50Hz" |
| S/N ratio | >58dB. |
| Ingress protection | IP66 |
| Lens | |
| Lens size | 3.6mm. |
| F/No./Lens Mount | F1.2/M12 |
| Infraed | |
| IR type | IR SMD 18 Pcs. |
| IR distance | 15-35M. |
| Day&Night | Support color, B/W, Auto,Ext adjustable |
| ICR Siwtch | Support IR filter (IR-CUT) |
| IR Smart | Support |
| Hardware interface | |
| Video output | BNC female x1 (1Vp-p Composite Output(75/BNC) |
| Power input | DC Jack x1 |
| Cable | OSD Cable |
| Electrical | |
| Power supply | DC12V(+-10%) |
| Power consumption | Max.5W. |
| Others | |
| Surg protection | 4KV, |
| Working environment | -10ํC to +50ํC |
| Working humidity | 10% to 90% |
| Dimension / Weight | 64mm*179mm / 370g. |
