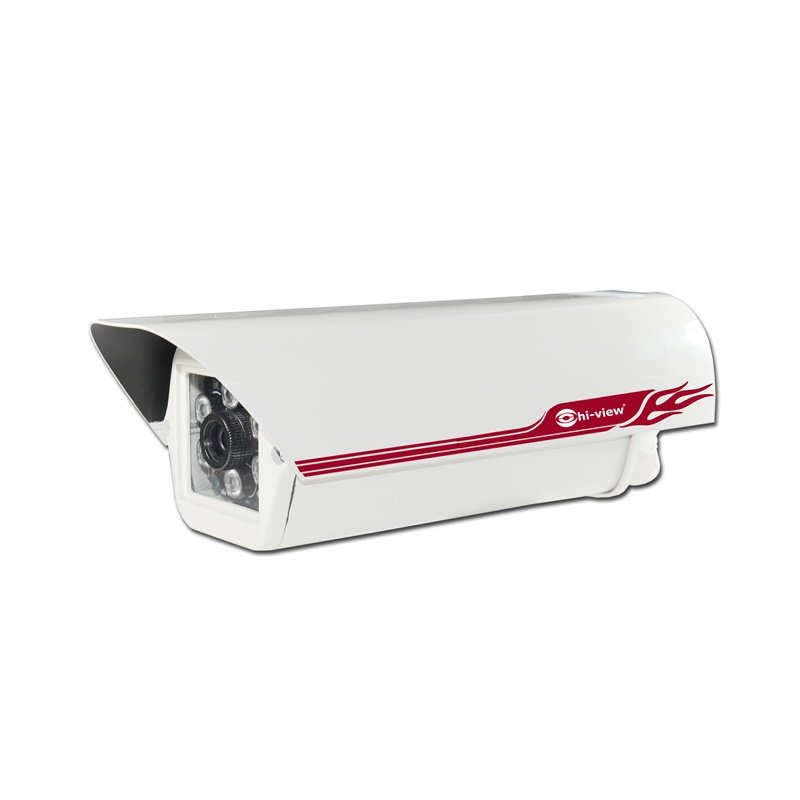

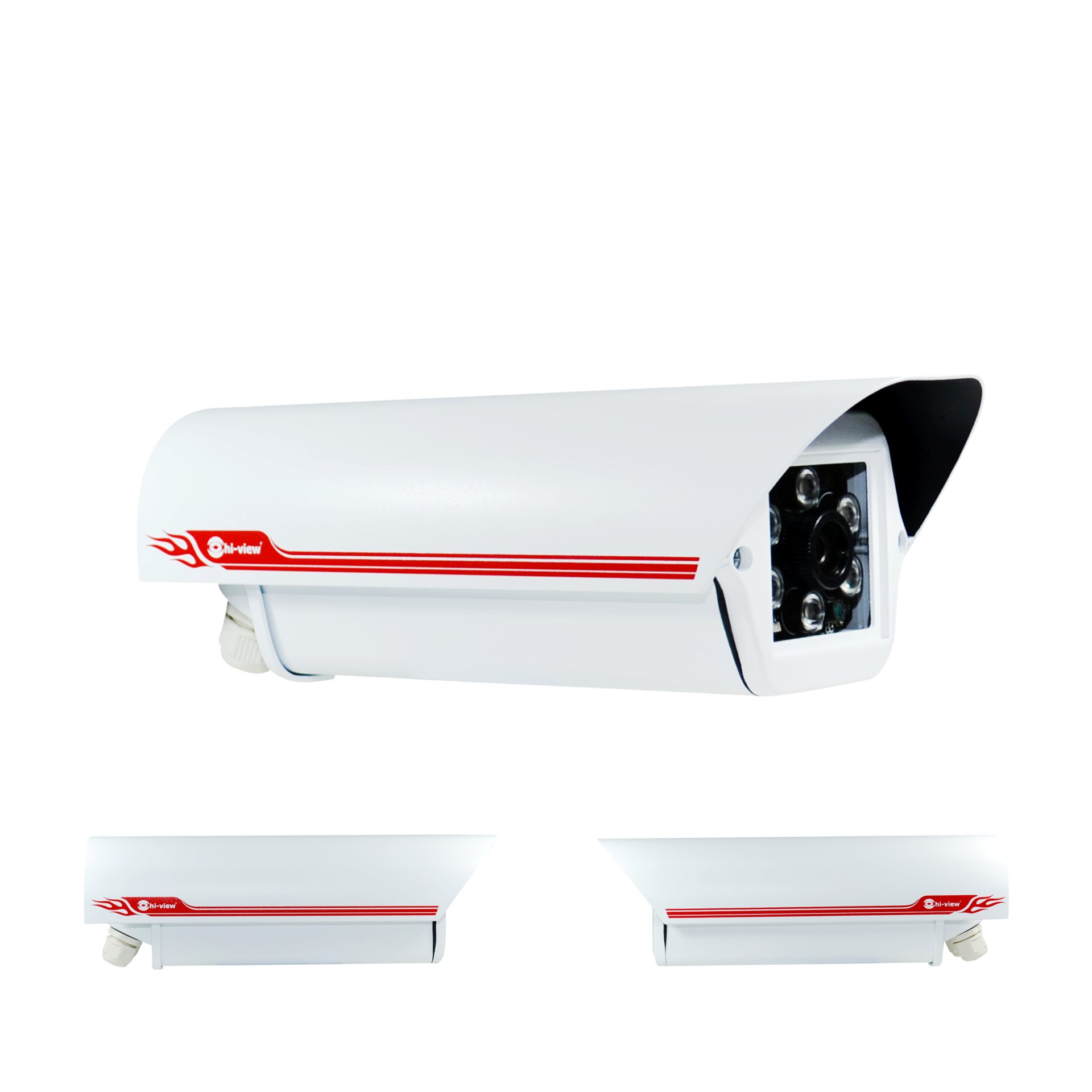

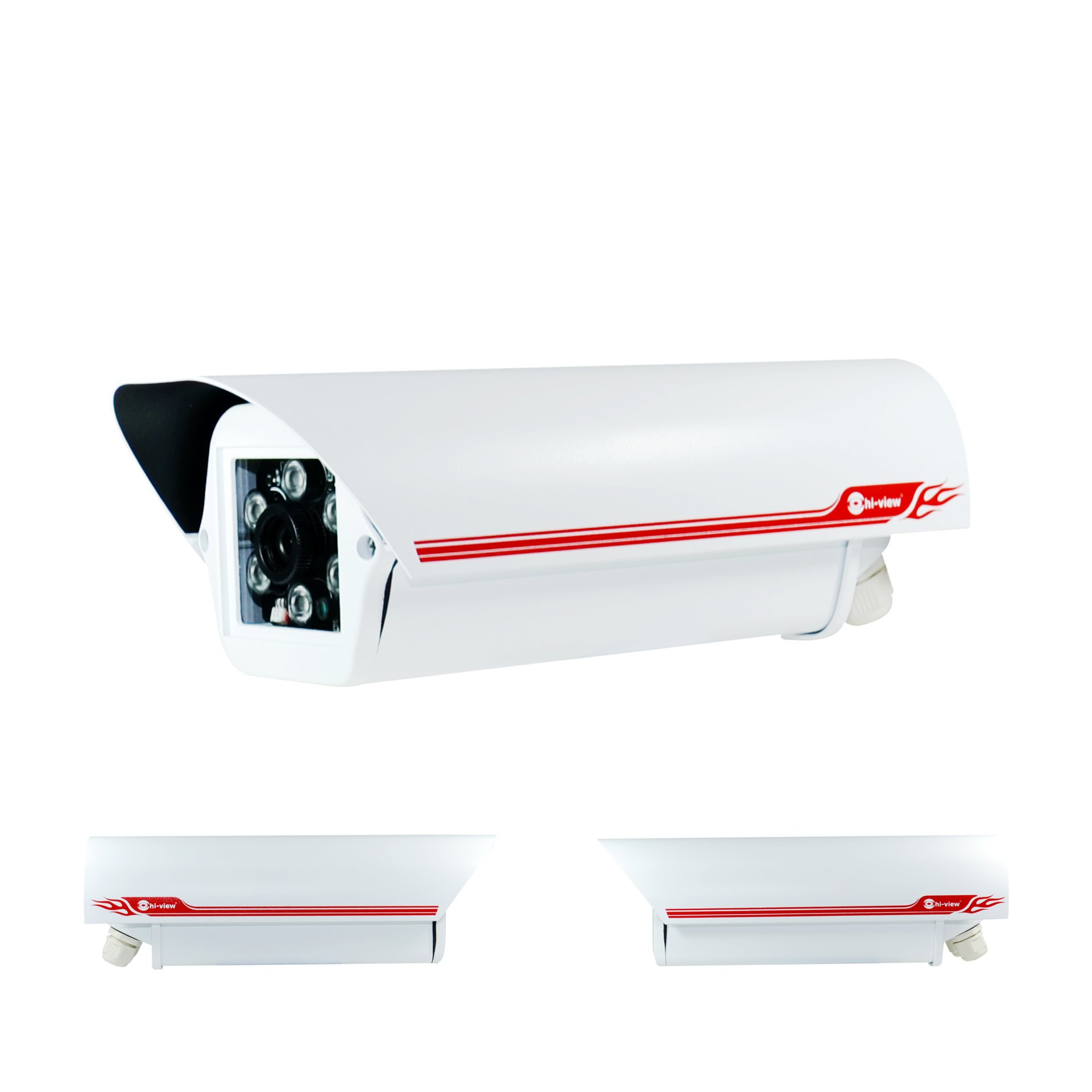

HA-1044H20

คุณสมบัติสินค้า:

1/2.7” CMOS Progressive Scan Sensor, AHD 4in1 (AHD,TVI,CVI,CVBS), 1920x1080P (2.0 Megapixel), Fixed HD Lens 4.0mm. (6,8 Option), Array 6 Pcs / 30-50M., 0.1 Lux/F2.0, 0 Lux with IR, IP 66, ไฟเลี้ยง DC 12V ±10%

Share

หมวดหมู่ : CAMERA AHD CAMERA 1080P

Share

  • 1/2.7” CMOS Progressive Scan Sensor
  • AHD 4in1 (AHD,TVI,CVI,CVBS)
  • 1920x1080P (2.0 Megapixel)
  • Fixed HD Lens 4.0mm. (6,8 Option)
  • Array 6 Pcs / 30-50M.
  • 0.1 Lux/F2.0, 0 Lux with IR
  • IP 66
  • ไฟเลี้ยง DC 12V ±10%
ModelHA-1044H20
Image Sensor1/2" CMOS Progressive Scan Sensor
Image SystemAHD 4in1 (AHD,TVI,CVI,CVBS)
CVBS CometSupport
Image Resolution1920x1080P (2.0 Megapixel)
Video output modeN/A
SynchronizationINT
Lens TypeFixed HD Lens 4.0mm. (6,8 Option)
Auto focus modeN/A
Angle of viewN/A
lrisAuto Electroic lris

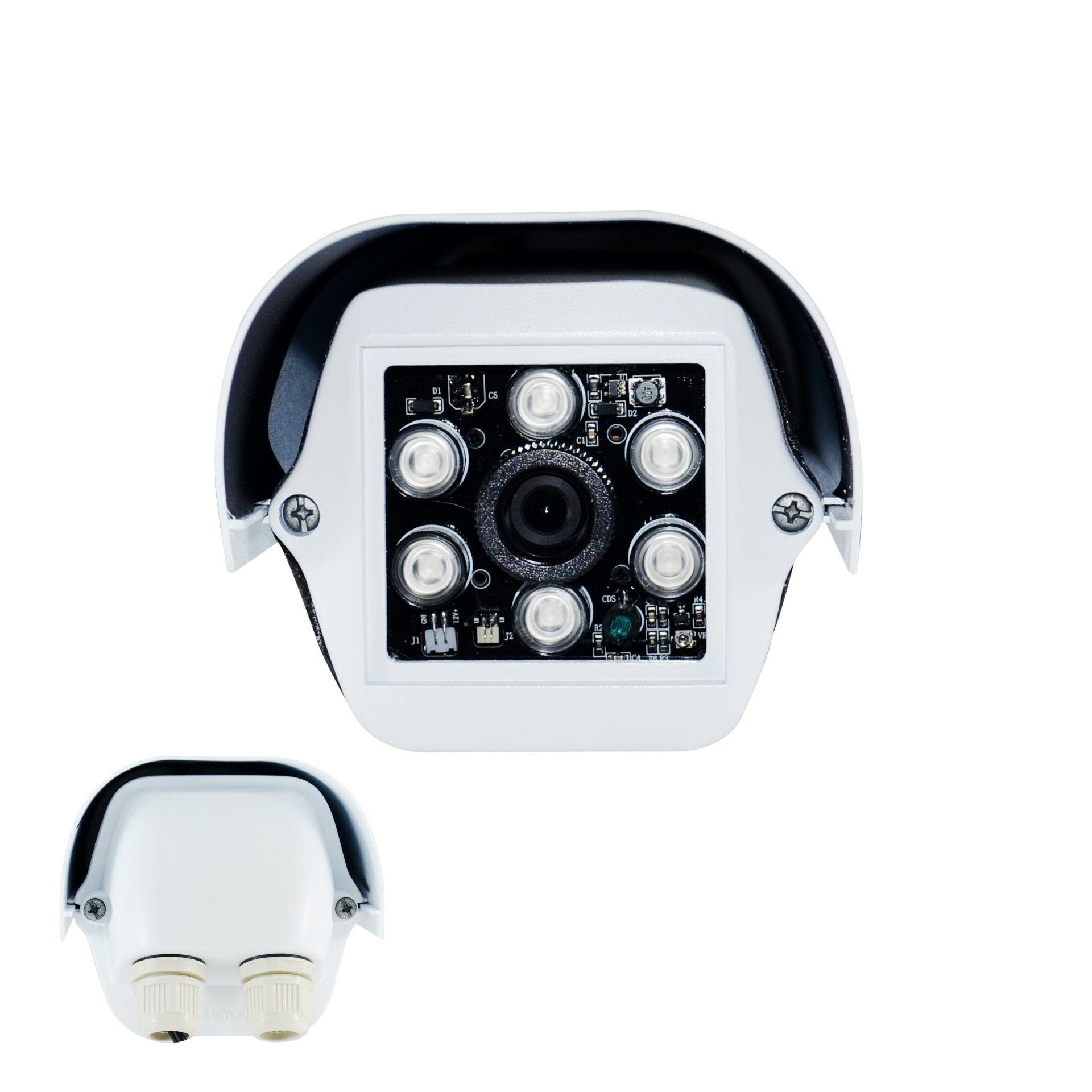

IR LED Array 6 Pcs
IR Distance30-50M.
IR LED850nm +- 25nm
IR View AngleView angle 70ํ, Beam spread 40ํ/Per LED
LED lifetimeMore than 10,000Hrs.
IR IntensitySmart IR
Min.Illumination0.1 Lux/F2.0, 0 Lux with  IR
Shutter Speed1/2s-1/100,000s (Auto)
Exposure Mode

Auto,1/25,1/50,FLK,1/200,1/400,1/1000,1/2000,1/5000

,1/10000,1/50000,x2,x4,x6,x8,x10,x15,x20,x30

Signal SystemPAL/NTSC
SNR>41dB (AGC off)
DAY & NightICR ( IR CUT),(Auto,B/W,External)

Image Setting

AGC,Sens-up,Brightness adjustable Defog,BLC,HSBLC,

ATW,AWB Freeze, Mirror, Neg.Image Motion,Privacy,

Defect Sharpness adjustable,Gamma, LSC

WDR

Support (On/off), Auto

2D-DNR

Support (Low,Middle,High)

3D-DNR

Support (Low,Middle,High)

Operating Temperature-30ํC-+70ํC
Operating Humidity10%-90%RH
Storage Temperature-30ํC-+60ํC
Storage Humidity0%-90% RH
Protection LevelIP66
UTC (COC)Support
OSD mennuSupport (Auto close)
