 คู่มือการใช้งานเครื่องตรวจจับอุณหภูมิ Hiview TE-W300


TE-W300 Quick Guide

1. Installation Location

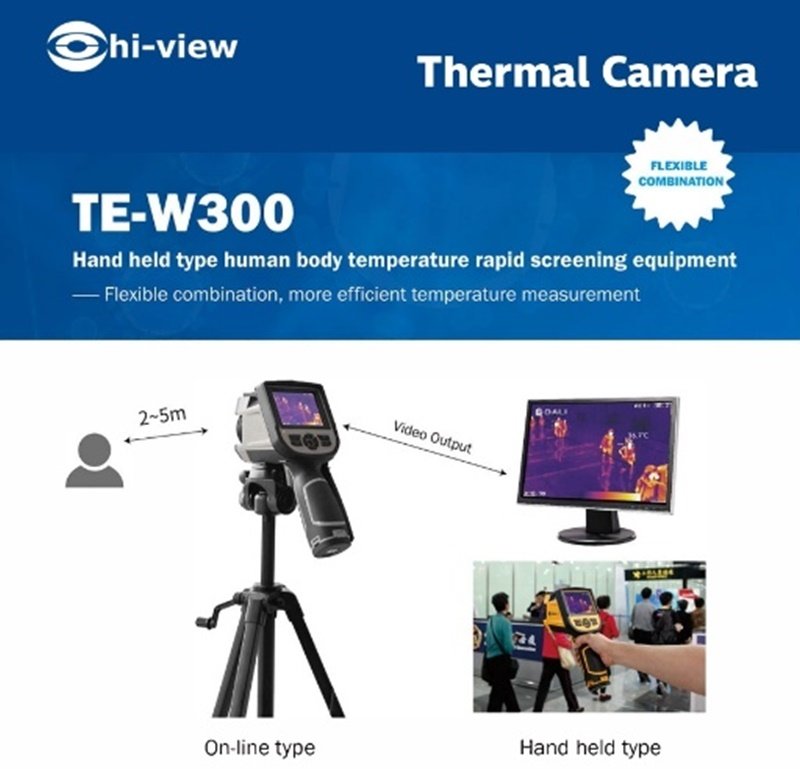

       1) The instrument is installed at a distance or 2-5 meters from the entrance of the channel, When person pass through, it is held in the picture for about 3-5 seconds
       2) The temperature measurement accuracy is easily affected by the environment. Please install the instrument indoors to avoid being blown.
       3) person should take off the hat



It is recommended to set up a special channel to ensure the temperature measurement effect, as shown below:

 2. Instrument installation

       Attach the standard buckle of the tripod to the hand-held instrument, please make sure that the direction of the buckle is 90 degrees with the direction of the infrared instrument lens. Please make sure that the installation position of the buckle is as shown below:
       Install the buckled instrument on the tripod, pleasa make sure the installation position is as shown in the figure below:

Wrong installation

1. Can not be installed laterally


2. Wrong horizontal installation



3. The button can not touch the device button

4. The device handle can not be parallet to the tripod handle

Proper installation

1. Snap vertion installation

2. Snap and device button to leave a gap

 3. Standard working status

       Press and hold the power button until the power light turns on, then the device will start. After normal start-up, the temperature measurement will begin arter 15 minutes of stabilization. P1_H represents the maximum temperature of the full screen. Adjust the rubber ring under the lens left and right to adjust the infrared image to the best effect. The standard working state is shown below:
