PS3016GS

คุณสมบัติสินค้า:

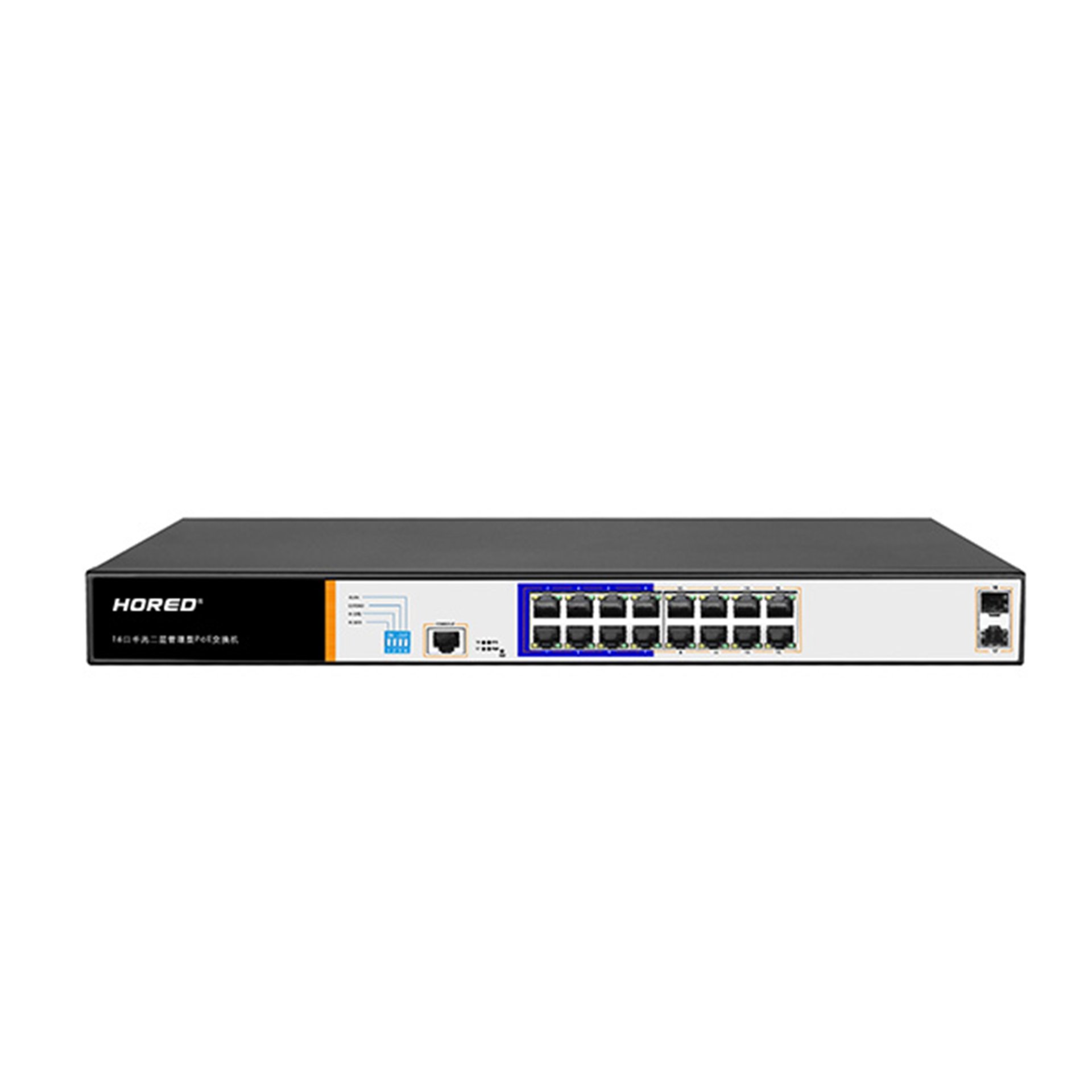

16 port Gigabit Managed POE switch ( Layer2) 16 10/100/1000Mbps RJ45 port + 2 Gigabit SFP + 1 console , support 4K VLAN , IEEE802.3af/at , Poe max 150 W single port 46 w bandwidth 36Gbps , Mac address : 8K , ACL , Multicast , Qos , Spanning tree Support WEB management (HTTP), Support Auto MDI/MDIX MDIX ,6Kv lightning protection,

Share

  • 16 port Gigabit Managed POE switch ( Layer2)
  • 16 10/100/1000Mbps RJ45 port + 2 Gigabit SFP + 1 console
  • support 4K VLAN , IEEE802.3af/at , Poe max 150 W
  • single port 46 w
  • bandwidth 36Gbps , Mac address : 8K , ACL , Multicast
  • Qos , Spanning tree
  • Support WEB management (HTTP), Support Auto MDI/MDIX MDIX
  • 6Kv lightning protection


Hardware Specifications

Network standardIEEE 802.3i IEEE 802.3u IEEE 802.3xIEEE 802.3ab   IEEE 802.3af  IEEE 802.3at
Port24 10/100/1000Mbps RJ45 port
2 gigabit SFP 1 Console
PoE16个10/100/1000Mbps RJ45 portsupport PoE+ Max 250WSingle port max 46W
LEDs18 Link/Act LEDS
16 POE LEDs
1 SYS LED
1 Power LED
PerformanceForwarding mode: store and forward
Bandwidth:36Gbps
Packet forwarding rate:23.8Mpps
8K MAC address table
Lightning protection6KV
Input100-240V/50-60Hz
Dimension(L×W×H)440mm×180mm×44mm


Software Specifications

Protocol standard
IEEE 802.3:Ethernet Media Access Control (MAC) ProtocolIEEE 802.3i:10BASE-T EthernetIEEE 802.3u:100BASE-TX Fast EthernetIEEE 802.3ab:1000BASE-T Gigabit EthernetIEEE 802.3z:1000BASE-X Gigabit Ethernet (fiber)IEEE 802.3ad:Standard method for performing link aggregationIEEE 802.3x:flow controlIEEE 802.1p:LAN Layer 2 Qos/Cos protocol for traffic priority (multicast filtering)IEEE 802.1q:VLANIEEE 802.1d:STP Spanning treeIEEE 802.1s:MSTP Spanning treeIEEE 802.1w:RSTP Spanning treeIEEE 802.3afIEEE 802.3at
Shortcut functionOne key AI VLAN
One key Extend
(1-8 port 250meters PoE distance)
One key AI PoE
One key Q0S (Video priority)
DHCPSupport DHCP Snooping
VLANSupport 4K VLAN
Support 802.1Q VLAN、MAC VLAN ,IP VLAN
Voice VLAN
MAC address tableComply the IEEE 802.1d standard
Support MAC address learning and aging automatically
Support static, dynamic, filter address table
SafetyPassword protection
Support based on the port number, IP address, MAC address restrictions on user access
Support HTTPS、SSL V3、TLS V1、SSH V1/V2
Support IP-MAC-PORT ternary binding
Support ARP protection, IP source protection, DoS protection
Support DHCP Snooping、DHCP attack protection
Support 802.1X certificated、AAA
Support port security, port isolation
Support CPU protection
POE managementSupport POE power limit
Support POE chip status view
Support setting PoE port priority
Support setting PoE power supply time period
Access control (ACL)Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering
Support port mirroring, port redirection,flow rate limiting, QoS re-marking
Quality of Service (QoS)Support 8 port queue Support port priority, 802.1p priority, DSCP priority
Support SP、RR、WRR、WFQPriority scheduling algorithm
Spanning TreeSupport STP(IEEE 802.1d),RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol
Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
MulticastSupport IGMP v1/v2 Snooping
Support fast leave mechanism
Support multicast VLAN
Supports multicast filtering, packet statistics, and unknown multicast discards.
Storm suppressionSupport multicast suppression
Support broadcast suppression
Support unknown unicast suppression
Link aggregationSupport static aggregation
Support dynamic aggregation
Support IP, MAC, and hybrid load balancing modes
Supports up to 32 aggregation groups
IPv6Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet
Support IPv6 SSH 、IPv6 SSL
Management and maintenanceSupport WEB network management (HTTP, HTTPS, SSL V3)
Support CLI (Telnet, SSH V1/V2, local serial port)
Support SNMP V1/V2/V3 Support LLDP、RMON
Support ARP protection, IP source protection, DoS protection
Support CPU monitoring, memory monitoring
Support system log, grading warning
Support Ping, Tracert detection, cable detection
