HP-97S40PE

คุณสมบัติสินค้า:

4MP (2592x1520) H.265 full real time coding Max. resolution: 2592x1520 ICR auto switch, true day / night 3D DNR, physical WDR Support HLC, BLC and defogging / ROI coding Support SD card local storage, up to 128GB Support CVBS video output and two-way audio Support hardware reset Support PoE power supply, AC 24V optional Support smart phone, iPad, remote monitoring Support P2P / Support three streams

Share

หมวดหมู่ : CAMERA IP CAMERA

Share



  • 4MP (2592x1520) H.265 full real time coding
  • Max. resolution: 2592x1520
  • ICR auto switch, true day / night
  • 3D DNR, physical WDR
  • Support HLC, BLC and defogging / ROI coding
  • Support SD card local storage, up to 128GB
  • Support CVBS video output and two-way audio
  • Support hardware reset
  • Support PoE power supply, AC 24V optional
  • Support smart phone, iPad, remote monitoring
  • Support P2P / Support three streams



ModelHP-97S40
Image Senser1/3"CMOS
Image Size 2688x1520
Electronic Shutter1/25s~1/100000s
AutolrisDC drive
Min.IIIumiationColor:0.05lux@F1.2,AGC ON;B/W:0.01 lux @F1.2,AGC ON
LensNon-standard
Lens MountC/CS
Day&NightICR
Wide Dynamic Range120dB
BLC/HLC/DefoggingYes
Digital NR2D/3D DNR
Video CompressionH.265/H.264/MJPEG
H.265 Compreaaion StandardMain Profile @ Leve4.1 High Tier
Resolution4MP (2592x1520), 2K(2560x1440), 3MP(2304x1296),
 1080P(1920x1080), 720P(1280x720), D1, CIF, 480x240
Main Stream60Hz: 1~30fps/2K (1~30fps)/3MP(1~30fps)/1080P(1~30fps)/720P(1~30fps)
 50Hz: 4MP(1~25fps)/2K (1~25fps)/3MP(1~25fps)/1080P(1~25fps)/720P(1~25fps)
Bit Rate 64Kbps~10Mbp
Encode Mode VBR/CBR
Quality Five levels under VBR; freely adjustable under CBR
 ROI, Saturation, Brightness, Chroma, Contrast,
Image Settings Wide Dynamic, Sharpen, NR, etc.
 adjustable through client software or web broser
Audio Compression G.711A/U
ROI Each ROI to be configured saparatrly

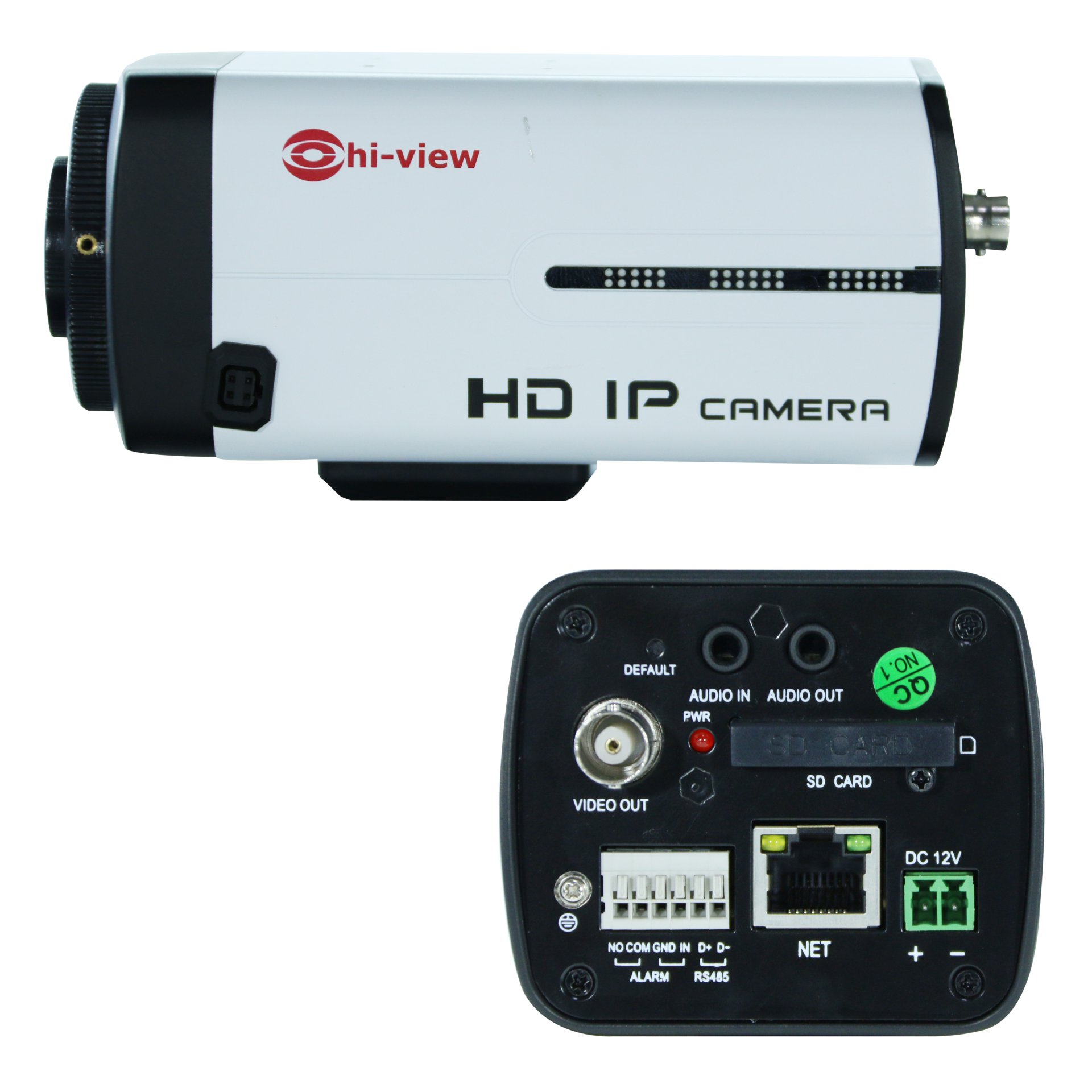

Interfaces
NetworkRJ45
AudioMIC INx1, MIC OUTx1
Viedo OutputCVBS video output (BNCx1)
Storage CardSupport SD card,up to 128GB
RS485YES
Alarm Input/Alarm Output1 CH
Functions
Remote MonitoringIE browsing, CMS remote control
Online ConnectionSupport simultaneous monitoring for up to 10 users;
 Support multi-stream realtime transmission
Network ProtocolTCP/ IP, UDP, DHCP, UPnP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface ProtocolONVIF, GB-T/28181-2011
Storage SD card local storage, network remote storage
Smart Alarm Motion alarm, sensor alarm
PTZ/PoE RS485x1/Yes
Other
Power SupplyDC12V/PoE
AC Input AC 24V optional
Power Consumption < 2.5W
Operating Environment -20 ํC~50 ํC, 10%~90% humidity
Dimensions (mm) 70x145x60 (WxDxH)
Weight (net)400g
InsallationWall mounting
