1/3" CMOS Sensor, ความละเอียดของภาพ 2.0 ล้านพิเซล, ค่าความสว่างของแสงขั้นต่ำ 0.01lux/F1.2, B/W:0.001lux/F1.2/30IRE, อินฟาเรด 36 ดวง, Shutter 1/50(1/60)s to 1/100,000s, ระยะอินฟาเรด 25 เมตร, เลนส์ Fixed HD Lens 3.6mm., ไฟเลี้ยง DC12V±10%
หมวดหมู่ : CAMERA ,  AHD CAMERA ,
Share

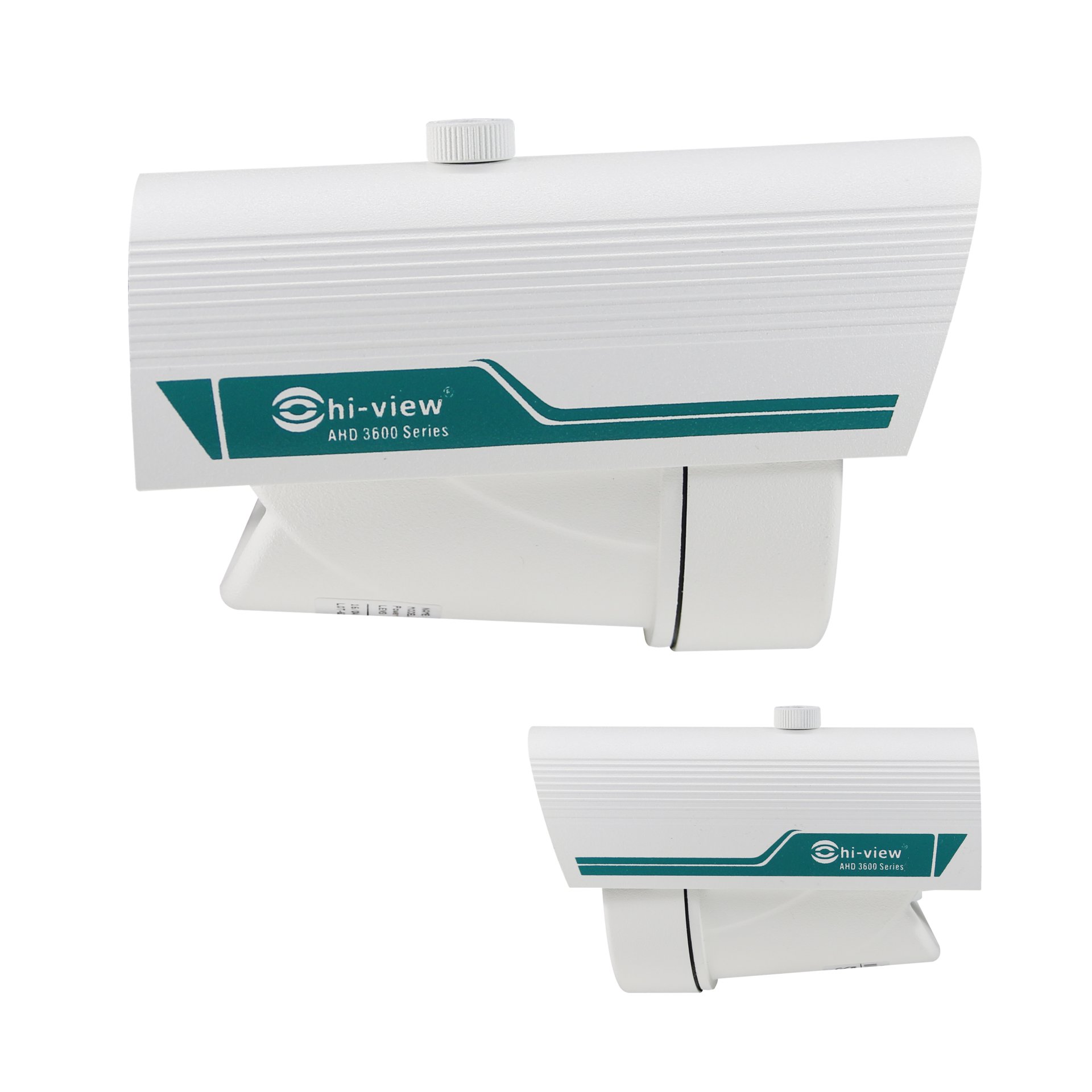

Model | HA-362B20G |
Image Sensor | 1/3"CMOS Sensor |
Scan system | Progressive Scan |
Image System | 2in1 (AHD.CVBS) |
CVBS Comet | Support |
Image Resolution | 1920x1080P (2.0 Megapixel) |
Video output mopde | 1080P/720P |
Synchronization | INT |
Lens Type | Fixed HD Lens 3.6mm |
Auto focus mode | N/A |
Angle of view | 90ํ view |
lris | Auto Electronic lris |
IR LED | Array 2Pcs |
IR Distance | 25M. |
IR LED | 850nm/28U.2ea |
IR View Angle | N/A |
LED lifetime | N/A |
IR lntensity | Smart IR |
Min.illumination | Color:0.01lux/F1.2/30IRE /B/W:0.001lux/F1.2/30IRE |
Shutter Speed | 1/53s-1/100.000s |
Shutter | Auto.1/25.1/50.FLK.1/200/1/400.1/1000.1/2000.1/5000. 1/10000.1/50000.x2.x4.x6.x8.x10.x15.x20.x25.x30 |
Signal System | PAL/NTSC |
SNR | >5dB (AGC off) |
Day & Night | ICR (IR CUT).(Auto.B/W.External) |
Image Setting | AGC. Sens-Up.Brightness adjustable Defog.BLC.HSBLC.ATW.AWB Freeze.Mirror.Neg.Image Motion.Privacy.Defect Sharpness adjustable.Gamma. LSC |
WDR | Support (On/off).Auto |
2D-DNR/3D-DNR | Support (Low.Middle.High) |
Operating Temperature | .-10ํC-+50ํC |
Operating Humidity | 30%-90% RH |
Storage Temperature | -30ํC-+65ํC |
Storage Humidity | 0%-90% RH |
Protection Level | IP68 |
UTC (COC) | Support |
OSD menu | Support (Auto close) |
Interface | BNC Female outputx1 (1.0Vp-p at 75Ohm.) |
Power Supply | DC12V+-10% /1A.(DC Jack Powerinput) |
Power Consumption | 4.5W. |
Material | Aluminum. |
Product Dimensions | 132x77.3x80.4mm.(Without Bracket) |
Product Weight | 360g. |
Cable Type | OSD Cable |
